In the world of gold trading, jewelry making, and collecting, accurately determining gold purity is paramount. With a plethora of testing devices on the market, how do you choose the one that best suits your needs? This article outlines common gold testing methods to help you make an informed decision.

1. Handheld XRF Analyzer: Convenience through Technology

The handheld XRF (X-ray Fluorescence) analyzer is a marvel of modern technology, widely appreciated for its exceptional portability and efficiency.

How It Works:

The device emits X-rays that strike the material under test, measuring the secondary X-rays (fluorescence) that the material emits in response. Each metal element produces a unique signature of X-rays, allowing the instrument to identify the elements present and their concentrations.

Key Advantages:

Non-Destructive Testing: Causes absolutely no damage to the sample, making it ideal for precious antiques, jewelry, and artworks.

Speed and Efficiency: Provides results typically within seconds to a minute, significantly boosting workflow productivity.

Ease of Use: Modern devices feature intuitive interfaces and can be operated reliably after minimal training.

Ideal Use Cases:

Rapid assessment in jewelry stores, pawnshops, and gold buying centers.

Incoming material screening and finished product sorting at precious metal refineries.

Non-destructive analysis of artifacts in museums and archaeological applications.

2. Fire Assay: The Classic Benchmark of Reliability

Fire Assay is considered the "classic method" for gold purity testing. With a long history, it delivers precise and reliable results and is often used as an arbitration standard.

How It Works:

A gold sample is wrapped in lead foil and melted at high temperatures. The precious metals form an alloy with the lead, while impurities are absorbed into the molten lead oxide and removed. The pure gold is then separated, and its purity is determined by comparing the weight before and after the process.

Key Advantages:

Ultimate Accuracy: Regarded as the authoritative method for gold analysis, with legally binding results.

Measures Entire Sample: Analyzes the sample's entire composition, effectively detecting fraud like gold plating or filling.

Ideal Use Cases:

Authoritative certification of gold bars and ingots by banks, refineries, and exchanges.

Serving as a calibration benchmark for other testing methods.

Arbitration analysis in trade disputes.

3. Density Method: Applying Archimedes' Principle

The Density Method is a traditional testing technique based on physics, perfectly suited for testing simple, solid gold or silver items.

How It Works:

It uses the Archimedes water displacement principle. The sample is weighed first in air, then in water. The resulting density is calculated from these two measurements. By comparing the measured density to the known density of pure gold (approximately 19.32 g/cm³), the purity can be inferred.

Key Advantages:

Low Cost: Requires only a high-precision scale and some basic tools.

Non-Destructive Testing: Leaves the sample intact.

Ideal Use Cases:

Ideal for hobbyists testing simple, solid gold jewelry or bars without hollow parts.

Useful as a preliminary check to support other testing methods.

4. Electronic Density Meters: A Modern Take on a Classic Method

The electronic density meter is the modern evolution of the density method. It integrates a scale, a lifting mechanism, and software to automate the entire measurement process.

Key Advantages:

Simple Operation: Automated measurements at the touch of a button minimize human error.

Enhanced Efficiency: Faster and offers better repeatability than the traditional density method.

Ideal Use Cases:

Rapid, non-destructive screening of large quantities of small items in jewelry workshops and quality control departments.

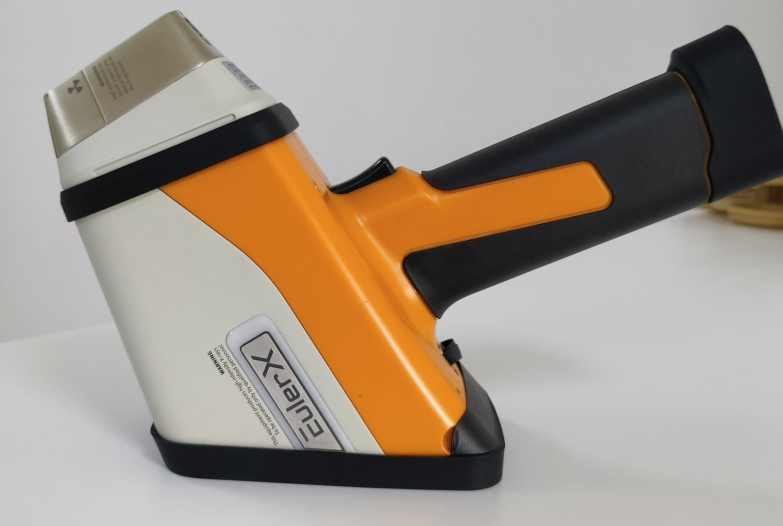

The EulerX990 Portable Gold Analyzer brings definitive, laboratory-grade precision to the point of need. It utilizes advanced XRF technology to deliver immediate and precise composition data for precious metals—including gold (9-24K), silver, platinum, and palladium—while expertly identifying plated items and irregular mixtures. Engineered for durability in harsh conditions, its rugged portability and intuitive interface serve professionals in jewelry, pawn, and mining. Integrated connectivity (Wi-Fi/USB) ensures seamless data export for comprehensive analysis and secure audit trails.

 Terras EulerX990 Handheld Precious Metal Analyzer

Choosing the Right Tool for You

The best method ultimately depends on your specific requirements:

If you require the utmost accuracy and authoritative certification and the test can be destructive, Fire Assay is the definitive choice.

If you need immediate, non-destructive results in a fast-paced environment, a handheld XRF analyzer is the most suitable tool.

If you are a hobbyist or working with a limited budget, starting with the Density Method can provide a solid foundation for initial assessments of simple gold items.

Each testing method holds unique value and is perfectly suited for specific applications. By understanding their individual principles and strengths, you can confidently select the most effective solution for your gold purity testing needs.
